ZERUST RUST REMOVERS AND VCI FILM

PROBLEM

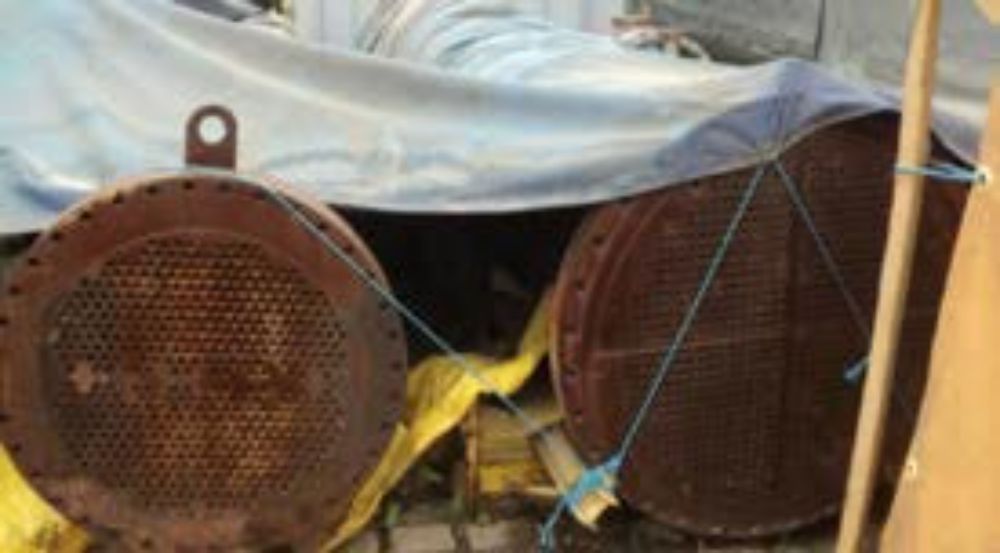

Corrosion on Heat Exchanger

• Corrosion on tube bundles and header faces is very common
• Manufacturers try to use greases, oil, coatings, and packaging but these approaches have largely been unsuccessful, and many of these approaches may not be feasible given the geometry of the heat exchanger components
• Heat exchangers in use, when cleaned or refurbished, typically have little/no protection and are stored outdoors
• Such corrosion can lead to
  • Maintenance cost increases for rework to fix the corrosion damage
  • Potential liabilities related to product failures in operation
  • Increase in operational costs due to unplanned delays

SOLUTION
Zerust Rust Removers

• Zeerust’s AxxacleanTM rust and tarnish removers are powerful solutions for the rework and recovery of metal items
• Zerust offers a range of technologies, from pH-neutral products to more aggressive products that also inhibit flash corrosion on cleaned surfaces
• Depending on the type of part/equipment being cleaned, the appropriate Zerust rust removers can be used as a dip, spray or brush on application

SOLUTION
Zerust Vapor Corrosion Inhibitor Film

• Zerust has pioneered the use of Vapor Corrosion Inhibitors (VCIs) impregnated in packaging materials to protect parts from corrosion
• VCIs emanate from the packaging and adsorb onto the surface of metals creating a mono-molecular layer that disrupts corrosion
• Being a vapor, the inhibitors penetrate all the nooks and crevices of the equipment
• Zerust has multiple types of VCI film based on client application requirements
• When the integrity of the packaging is maintained, Zerust VCIs can protect metal parts for 10+ years
• The VCI in Zerust film is FDA approved for food applications and is non-toxic and safe to use

CLIENT APPLICATION

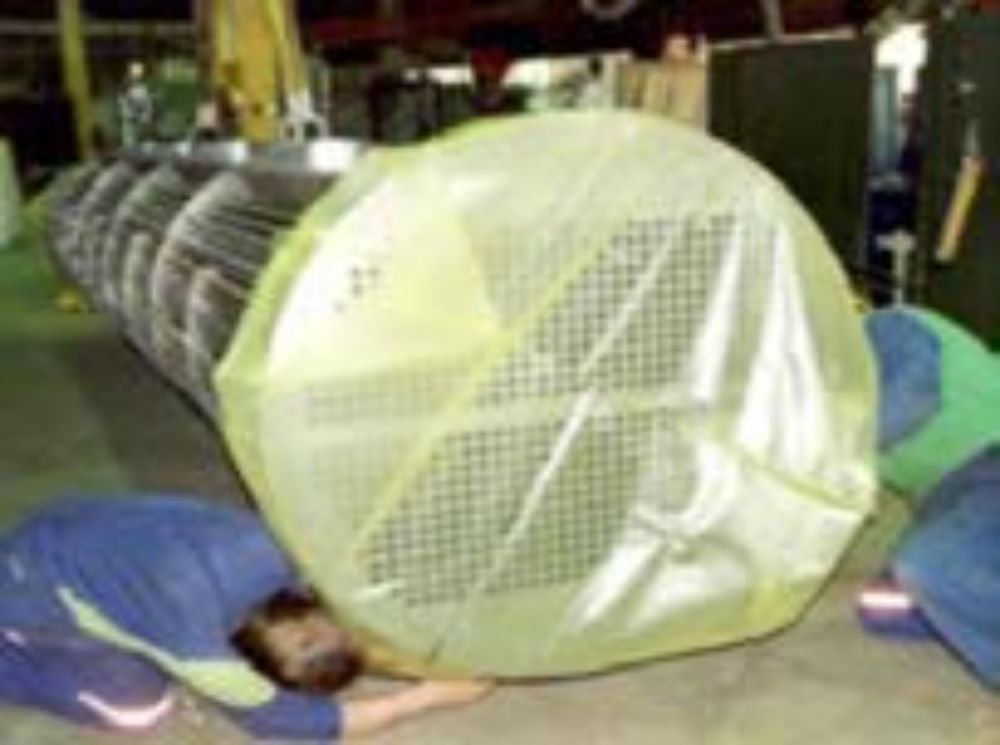

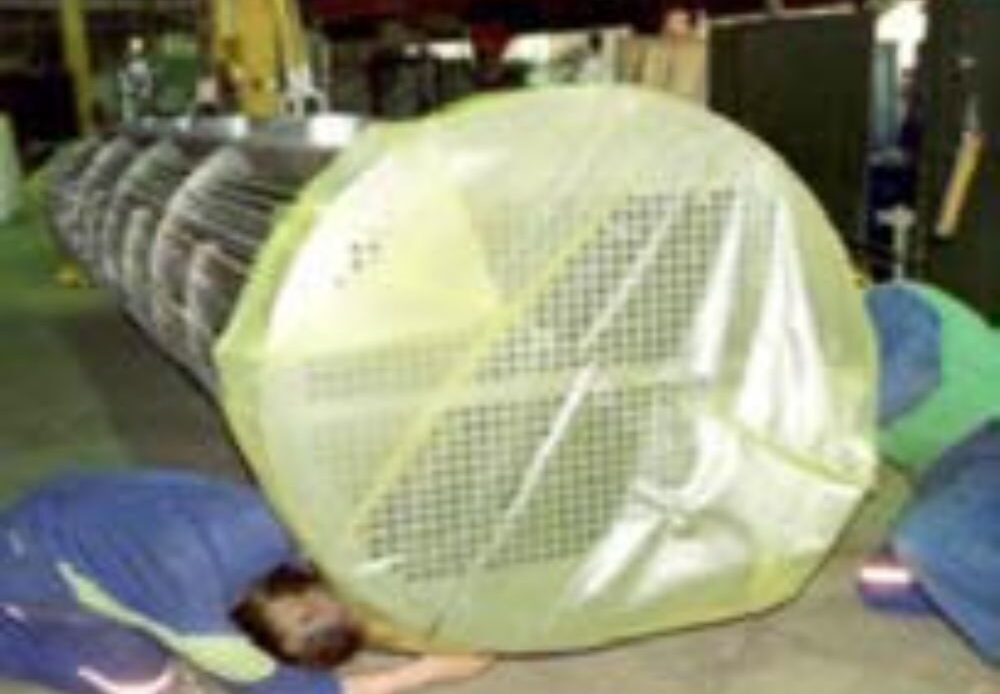

Heat Exchanger Preservation

• Problem: Heat Exchangers whether new or refurbished, have a complex geometry that make them susceptible to corrosion while making traditional cleaning and preservation difficult
• Solution: Zerust products make heat exchanger preservation simple with high strength VCI diffusers enclosed inside VCI film
• Heat exchangers that are cleaned and stored indoors can be preserved with Zerust ferrous (yellow) film wraps without the need for the outdoor preservation film.
• The VCIs release within the enclosure and penetrate the various voids including the insides of the tubes to protect from corrosion

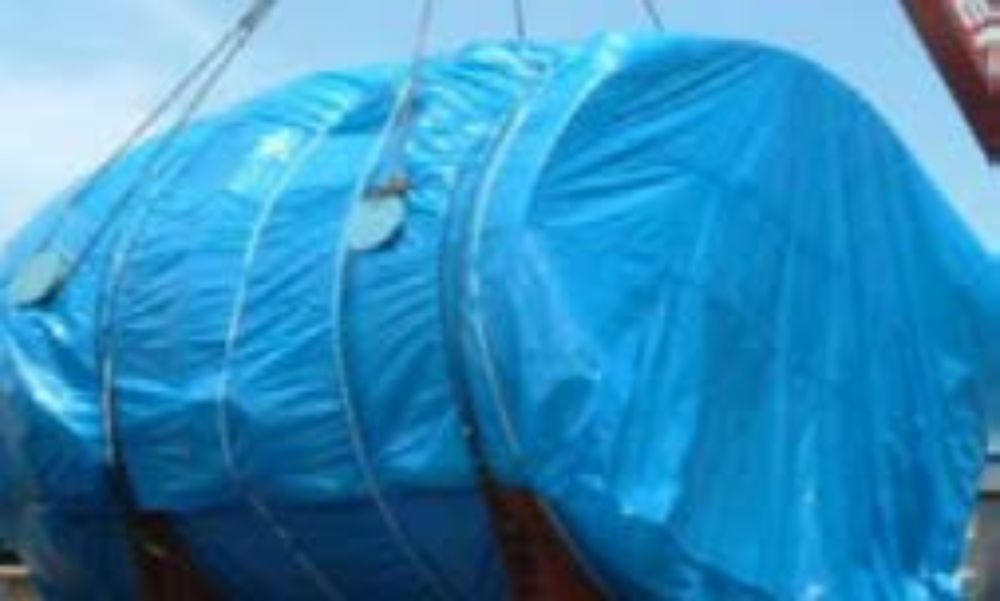

• Shrinkable UV resistant outdoor protection films provide an additional barrier layer
• Desiccants between the two layers minimize humidity and facilitate long term preservation

CLIENT APPLICATION

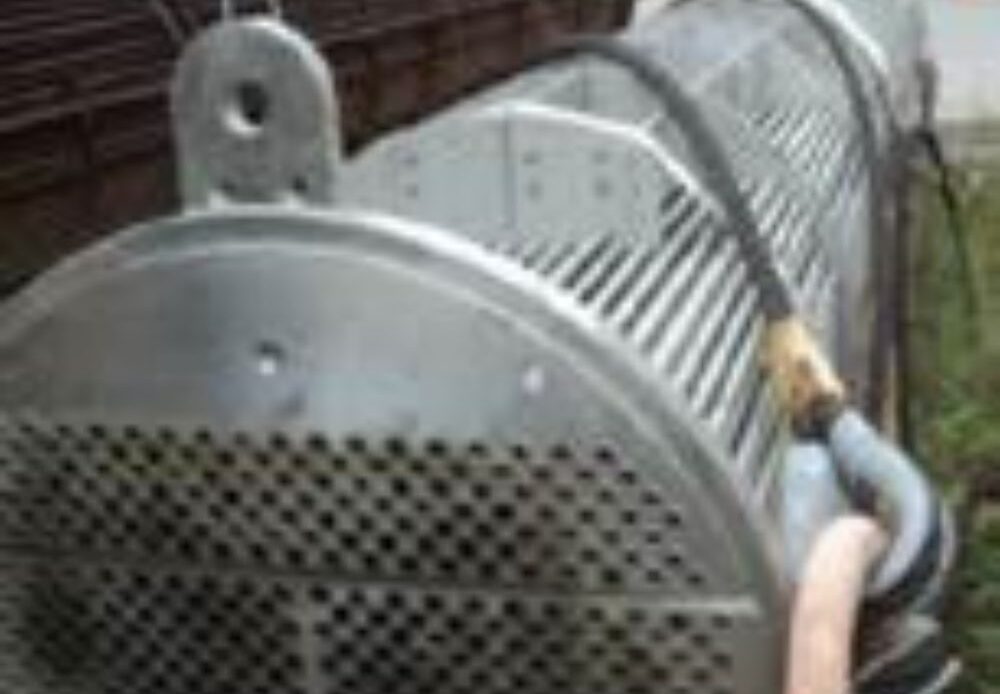

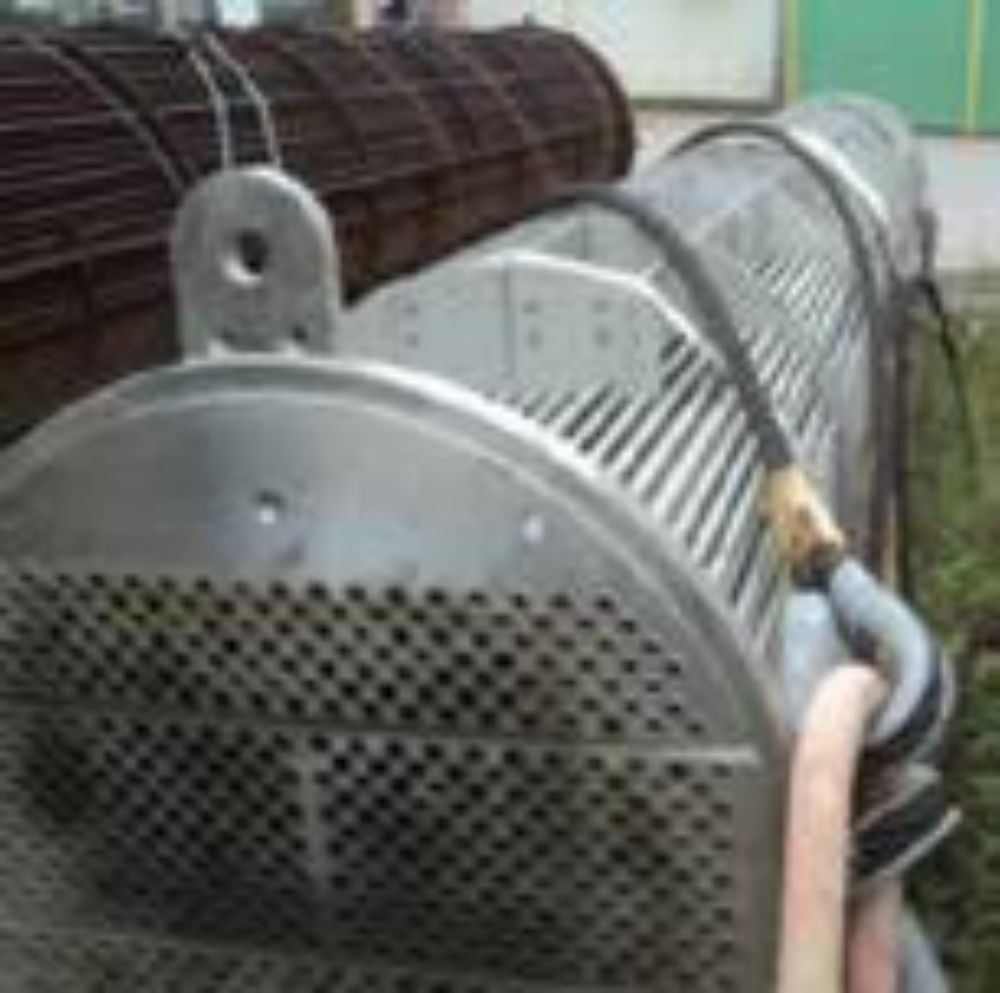

Heat Exchanger Cleaning

• Smaller heat exchangers can be similarly cleaned using custom baths
• In addition to the external surfaces, the Zerust chemistry travels through the tubes and cleans the insides as well; calcium carbonate scale/deposits can also be removed
• The process is quick and effective and the reusable Zerust products make the process economical
